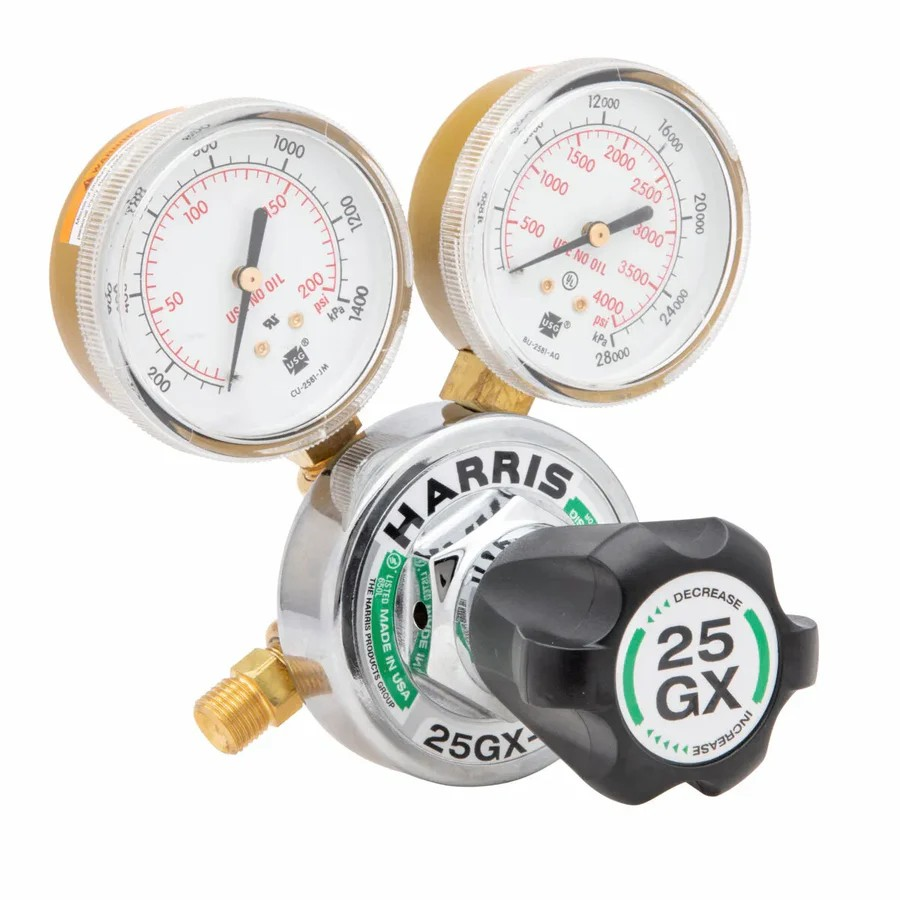

Harris 25GX-145-540 Single Stage Oxygen Regulator

$202.25

Description

Single Stage Oxygen Regulator

Harris – Model 25GX-145-540 best value medium-to-heavy duty single stage regulator
Victor Cross Reference Model & Part #: G350-150-540 – 0781-9415
Gas Type: Oxygen
Inlet: CGA 540
Outlet: 9/16 in. – 18 RH
Certification: CGA E-4; UL® listed

Harris Model 25GX Single Stage Oxygen Regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants.

Features
  • High end features for economical price
  • Workhorse of Harris industrial Regulator line
  • Ergonomic ABS plastic knob for easy grip and precise adjustment
  • Brass body and electroless nickel=plated zinc bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Steel dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • UL listed



Specifications

Adjusting Knob ABS plastic
Body Brass
Bonnet Electroless nickel-plated zinc
Certification CGA E-4
UL listed
Cv 0.17
Delivery Pressure Gauge (PSIG) 200
Delivery Pressure Range (PSIG) 0 – 145
Diaphragm Neoprene
Duty Medium to heavy
Gas / Gas Service Oxygen
Gauges 2.5 in. Steel dual scale
Inlet Connection CGA 540
Maximum Inlet Pressure (PSIG) 3000
Nozzle Brass
Outlet Connection 9/16 in. – 18 RH
Pressure Regulation PSIG/100 PSIG 0.2
Recommended Items/Accessories Steel Gauge Guard – Red (Fuel) – PN 4300238
Steel Gauge Guard – Green (Oxygen) – PN 4300239
Seat PTFE Teflon
Supply Pressure Gauge (PSIG) 4000
