Description

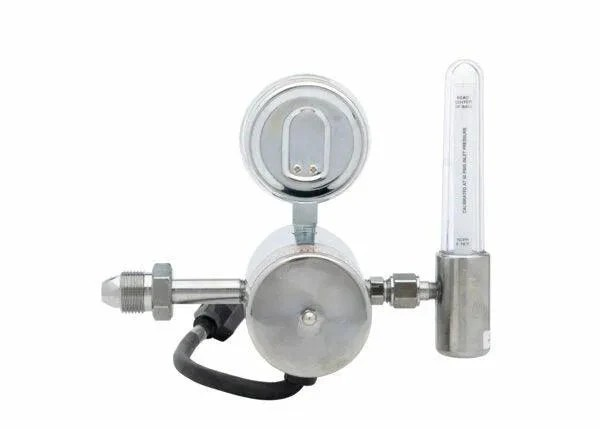

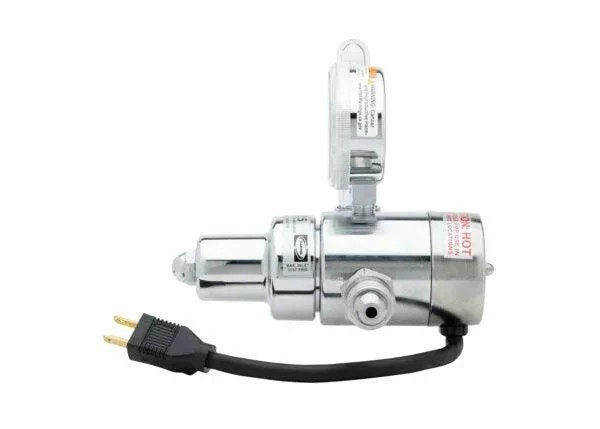

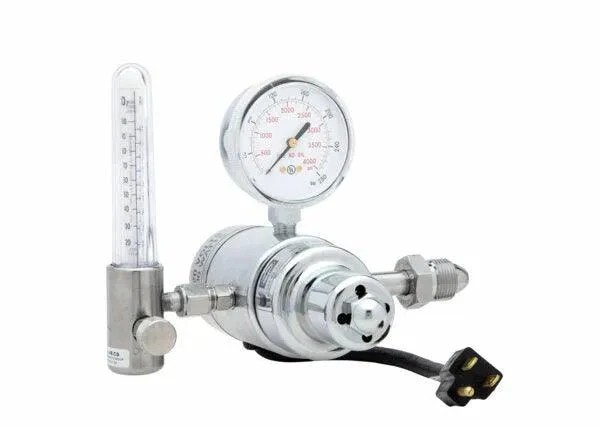

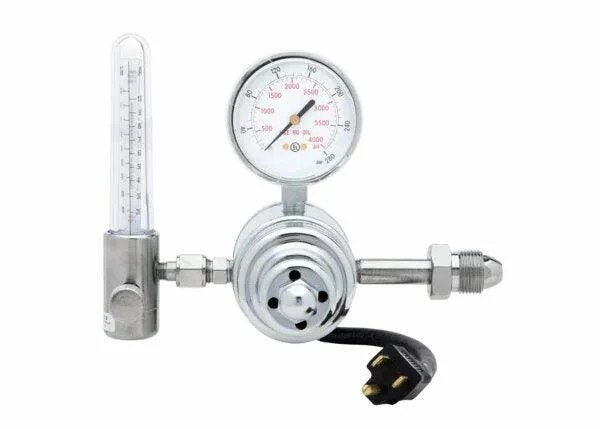

240-Volt Flowmeter Regulator

Model HP725 is a two stage electrically heated 240-Volt flowmeter regulator designed to resist carbon dioxide (CO2) regulator freeze-up. It is well suited for shielding arc welding, chemical blanketing, purging and Ph control. The flowmeter includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The regulator has a chrome-plated brass body and 2.5″ dual scale gauge, Stainless-Steel diaphragm and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. The heater is 200 watts, 240 volts. The outlet connection is 5/8″ – 18″ (F). Electrical components are UL listed.

Features

• Electrically heated flowmeter regulator for use with CO2 and Ar/CO2 mixes
• More accurate than ball and tube flowmeters
• Provides up to 100 SCFH flow at 100% duty cycle
• Thermostatically controlled temperature
• Equipped with a 200-watt, 240-volt UL listed electric heater
• Chrome-plated brass body and bonnet for longer service life
• 2.5″ chrome-plated brass dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect from particulate contamination
• Features a Stainless-Steel diaphragm to eliminate the absorption and release (or off-gas) contaminants.
• Durable cover and easy-to-read flow tube
