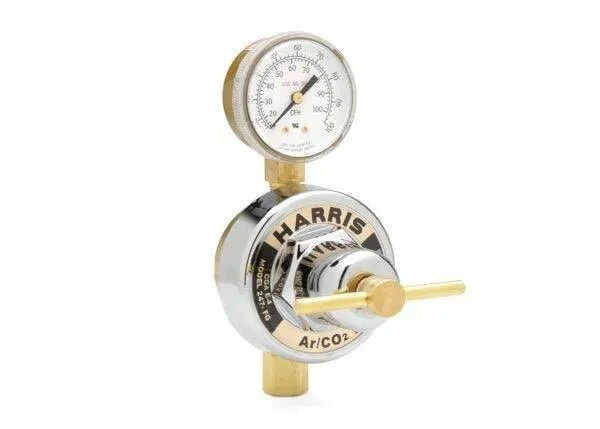

Harris Model 247-FG-1/4 in Pipeline Single Stage Flowgauge Regulator

$347.10

Description

1/4 in Pipeline Single Stage Regulator

Model 247 flowgauge regulator is designed to deliver high gas flows from low pressure piping systems up to 100 SCFH. The Model 247 features a brass body, chrome-plated bonnet, 2 in. gold-painted steel dual scale gauge, brass T-screw adjustment and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. This 1/4 in pipeline single stage regulator is ideal for applications requiring back entry equipment.

Features

  • Economically priced back entry pipeline flowgauge regulator
  • Designed to deliver high gas flows from low pressure piping systems
  • Brass body and chrome-plated zinc die-cast bonnet for longer service life
  • Easy-to-operate brass T-screw adjusting handle
  • 2 in. Gold painted steel (SCFH) durable, easy-to-read gauge
  • Rubber diaphragm for more sensitive pressure control
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
