Description

Two Stage Oxygen Regulator

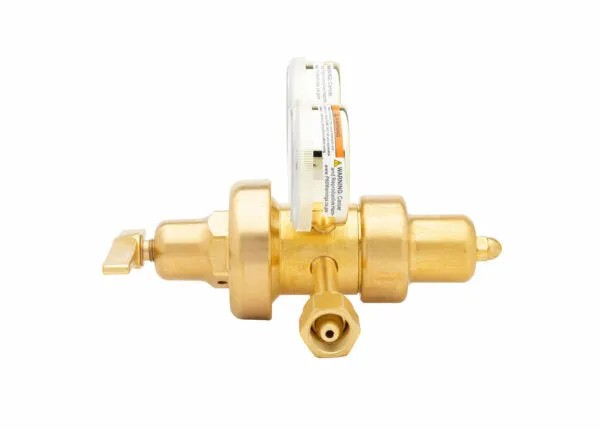

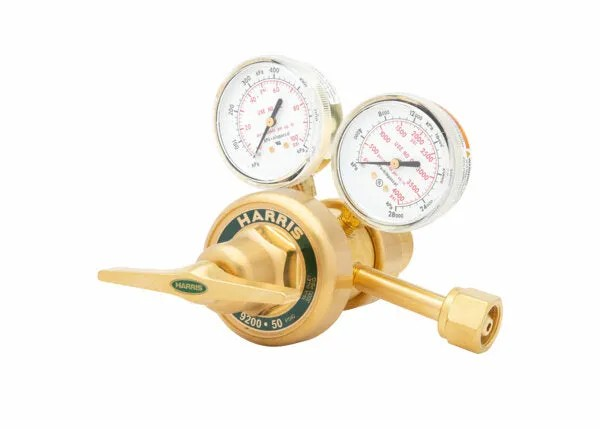

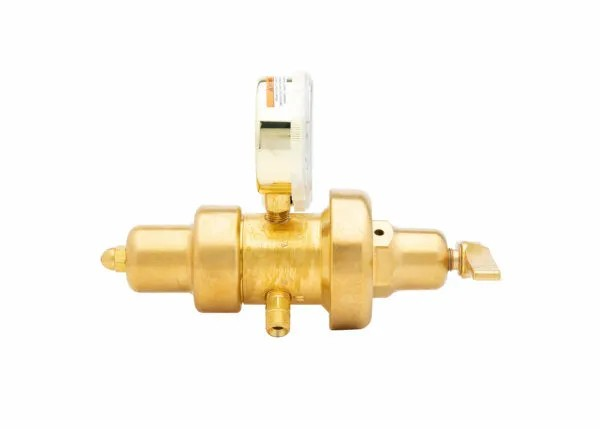

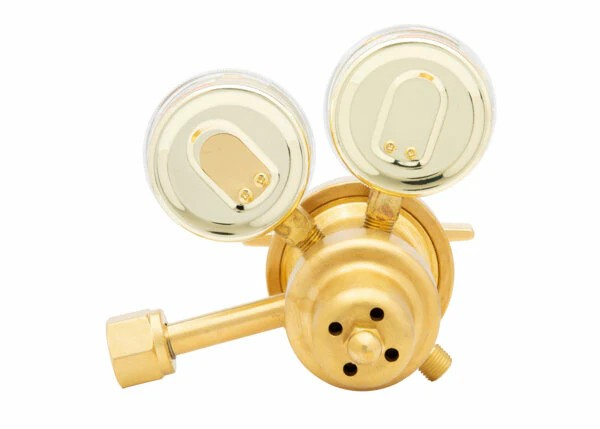

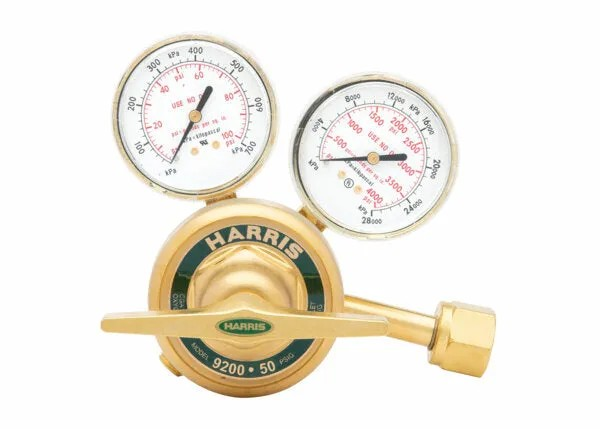

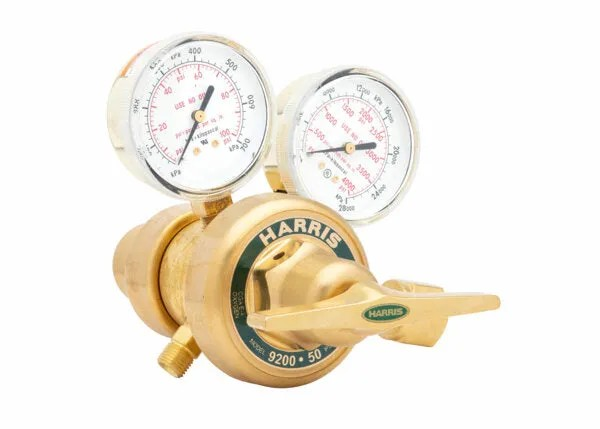

Model 9200 two stage Oxygen regulator is a standard for general purpose laboratory, industrial and welding applications. This heavy-duty model is designed for applications where a constant delivery pressure is required over a wide range of inlet pressures. Model 9200 features a neoprene diaphragm, self-reseating relief valve, one-piece encapsulated seat design with internal filter and Teflon® seat and T-screw bar handle.

Features

• For general purpose laboratory, industrial and welding applications
• Designed for use when constant delivery pressure is required over a wide range of inlet pressures
• Brass body and bonnet for longer service life
• Easy-to-operate brass T-screw bar adjusting handle
• 2.5 in. Brass dual scale easy-to-read gauges (psi/bar)
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Neoprene diaphragm for better pressure control
• Use for welding applications where neoprene diaphragms are acceptable
• Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
