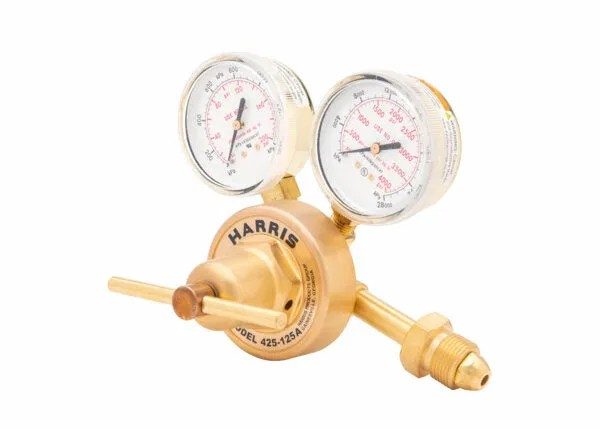

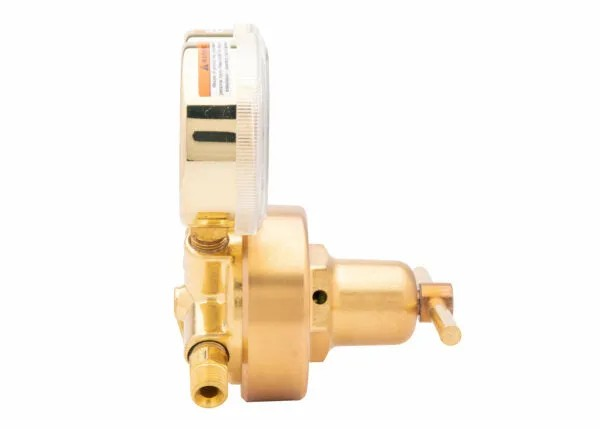

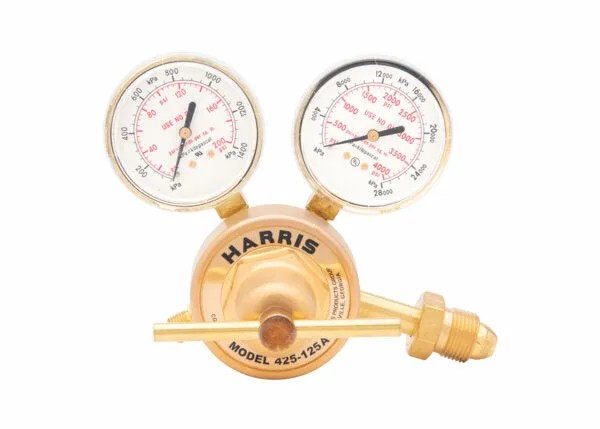

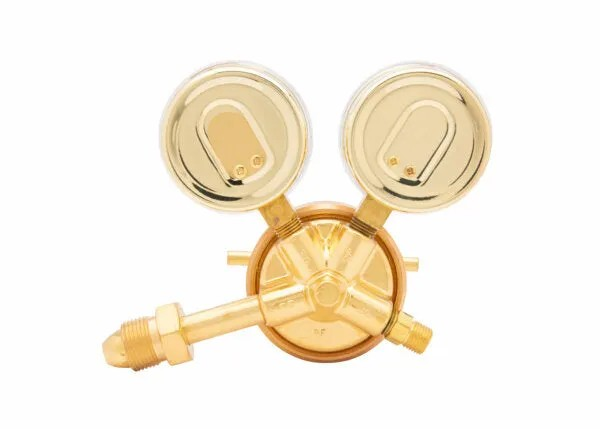

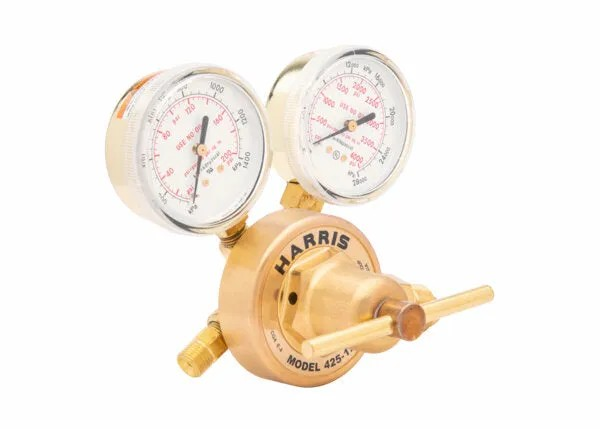

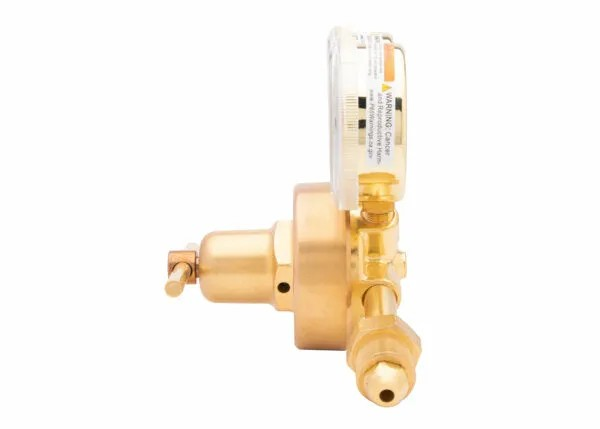

Harris 425-15-580 Single-Stage Argon/Helium/Nitrogen Regulator

$201.44

Description

Single-Stage Argon/Helium/Nitrogen Regulator

Model 425 is a premium industrial, single-stage Argon/Helium/Nitrogen regulator that is an ideal choice for most industrial applications. This regulator incorporates a number of Harris features designed to make it a rugged, long-lasting performer, including an exclusive tamper-proof, self-reseating internal HP safety valve and a neoprene diaphragm. The 425 is also available in a multitude of pressure ranges and for all standard industry gases. *Some models are available in clamshell packaging (CS).

Features

  • Single-stage industrial regulator with premium features
  • Designed for rugged, long-lasting performance
  • Easy-to-operate brass T-screw adjusting handle
  • Brass body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5 in. Brass-plated steel dual scale easy-to-read gauges (psi/kPa)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
  • UL® listed
  • Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve

Specifications

Equipment

Adjusting Screw Brass T-screw
Body Brass
Bonnet Brass
Certification CGA E-4
UL® listed
Cv 0.17
Delivery Pressure Gauge (PSIG) 30
Delivery Pressure Range (PSIG) 0 – 15
Diaphragm Neoprene
Duty Heavy
Equipped With Tamper proof, self-reseating, internal high-pressure safety valve
Gas / Gas Service Argon (Ar)
Helium (He)
Nitrogen (N2)
Gauges 2.5 in. Brass dual scale (psi/kPa)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. – 18 RH
Pressure Regulation PSIG/100 PSIG 0.20
Recommended Items/Accessories Steel Gauge Guard – Red (Fuel) – PN 4300238
Steel Gauge Guard – Green (Oxygen) – PN 4300239
Adapter – 9/16 in. – 18 (F) x 5/8 in. – 18 (F) PN 90000002
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 7 Years
