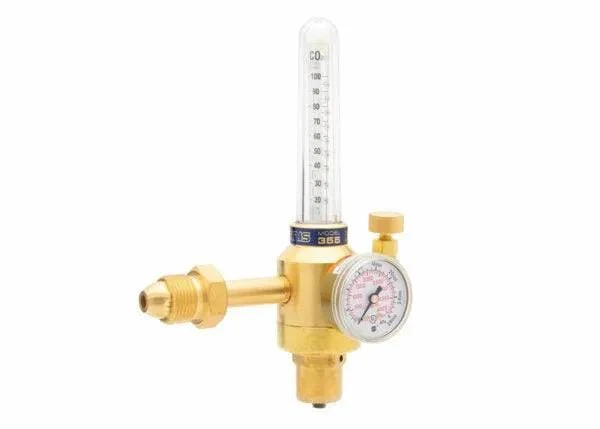

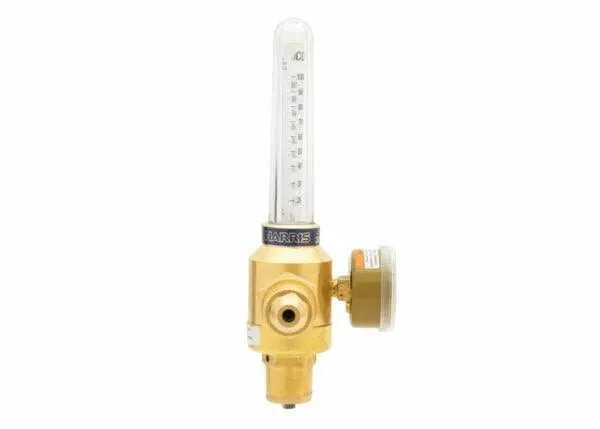

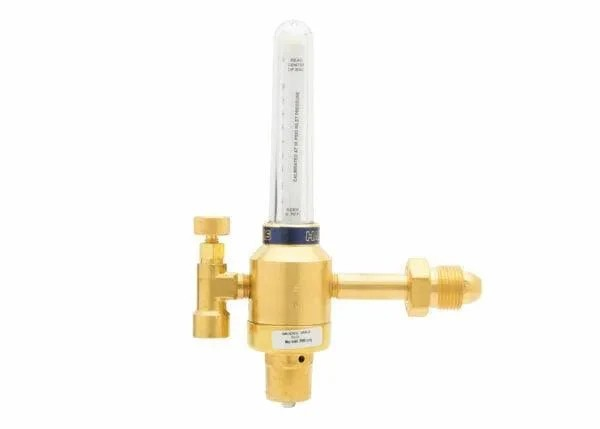

Harris 355-2CD Compensated Flowmeter Argon/Carbon Dioxide Regulator

$404.50

Description

Compensated Flowmeter Regulator

Model 355-2 incorporates an Argon/Carbon Dioxide regulator and flowmeter into one compact unit. It is pressure compensated to 50 psig. The flow tube and float are easily changed for different gases. The flow tube has dual calibration. This compensated flowmeter regulator includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. The regulator features a brass body, 1.5” steel dual scale gauge and one-piece encapsulated seat design with internal filter and PTFE Teflon seat. This flowmeter Regulator is UL listed. The outlet connection is 5/8″ – 18″ (F). For vertical mounting only.

Features

  • Compact, pressure compensated to 20 psig UL listed flowmeter regulator in one unit
  • Brass body and bonnet for longer service life
  • Neoprene diaphragm for better pressure control
  • 1.5″ Steel dual scale easy-to-read gauge
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Durable cover and easy-to-read flow tube provide accurate flow-control up to 140 SCFH
  • Dual calibration on flow tube
  • Sensitive needle valve for fingertip control permits highly accurate flow settings
  • Flow tube and float are easily changed for different gases
  • Vertical mounting only

Specifications

Equipment

Body Brass
Bonnet Brass
Capacity Up to 140 SCFH
Certification CGA E-4
UL® listed
Compensated PSIG 50
Diaphragm Neoprene
Gas / Gas Service Argon (Carbon Dioxide – CO2)
Gauges 1.5″ Steel dual scale
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 5/8″ – 18 RH (F)
Recommended Items/Accessories Inert Gas Hose 3/16″ x 10′ Single B&B R-Grade Black – PN 4300138
Scale Range SCFH 20 – 100 (20 – 100)
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 0 – 4000

Warranty

Warranty 7 Years
