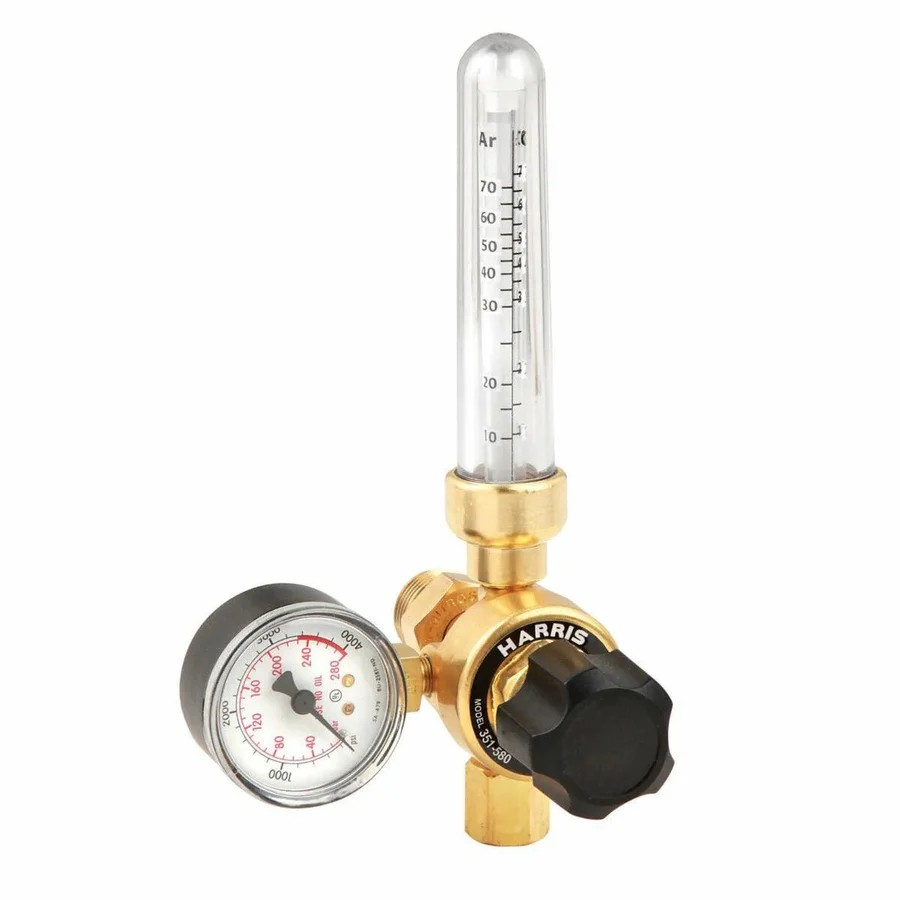

Harris 351-60Ar-580 Cylinder Flowmeter Argon/Carbon Dioxide Regulator

$209.46

Description

Cylinder Flowmeter Argon/Carbon Dioxide Regulator

Harris Model 351-cylinder flowmeter Argon/Carbon Dioxide regulator is zero-compensated for more efficient shielding gas use. The unique design of this flowmeter makes it more resistant to carbon dioxide (CO2) freeze-up than comparable competitive Harris Models. This flowmeter features a durable, easy-to-read, flow tube and cover. The Regulator features a brass body, 50mm ABS plastic dual scale gauge, one-piece encapsulated seat design with internal filter and PTFE Teflon seat to protect it from particulate contamination and a large plastic knob for easy grip and precise adjustments.

Features
  • Economical, compact flowmeter Regulator for Cylinder applications
  • Zero compensated for more efficient shielding gas use
  • Plastic knob for easy grip and precise adjustments
  • Brass body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 50mm ABS plastic dual scale easy-to-read gauge (psi bar)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Accurate dual scale (psi/bar) flow tube provides accurate flow control to 70 SCFH
  • More resistant to carbon dioxide Freeze-up than comparable competitive Harris Models
  • Vertical mounting only

Specifications

Equipment

Adjusting Knob Plastic
Body Brass
Bonnet Brass
Certification CGA E-4
Compensated PSIG 0 – zero
Diaphragm Neoprene
Duty Heavy
Flow Capacity (SCFH) 10 – 70
Gas / Gas Service Argon
Carbon Dioxide
Gauges 50mm plastic dual scale (psi/bar)
Inlet Connection CGA 580
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 5/8 in. – 18 (F)
Recommended Items/Accessories Single BxB T-grade black inert gas hose 3/16 in. x 10 ft. – PN 4300138
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000
Typical Application Gas-shielded welding
Other industrial applications

Warranty

Warranty 7 Years
