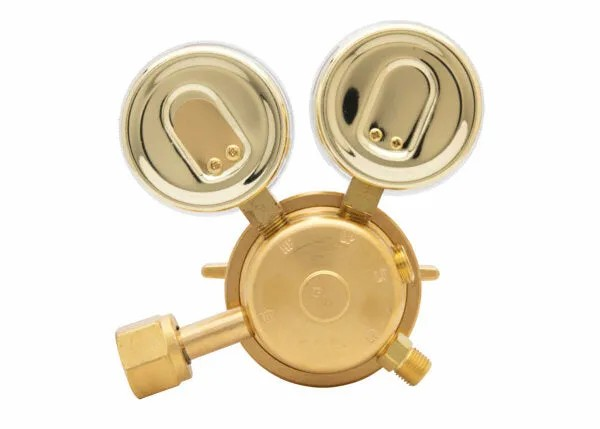

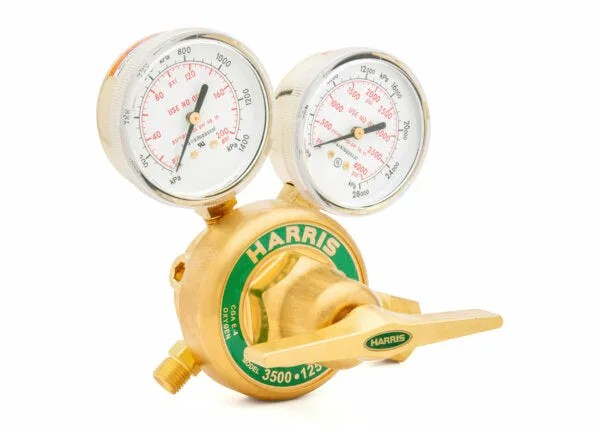

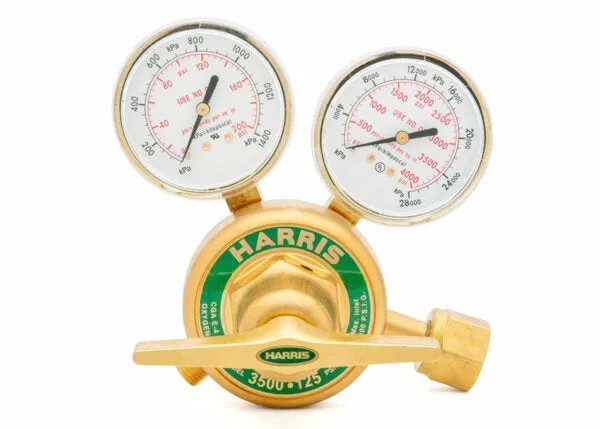

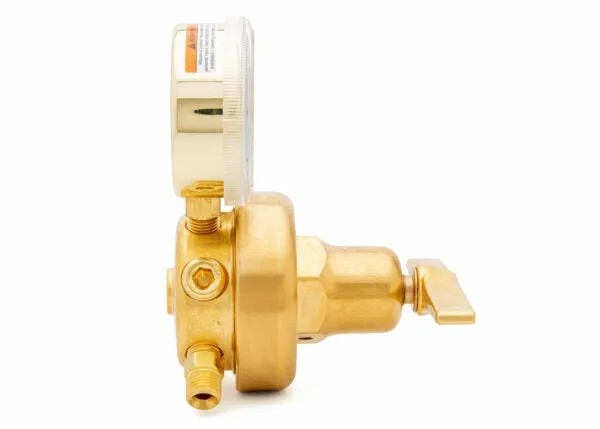

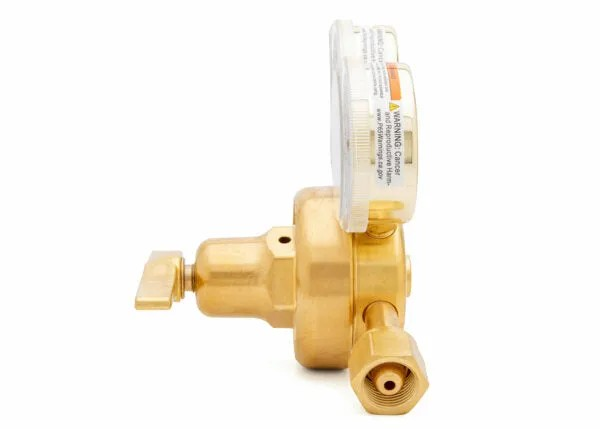

Harris 3500-125-540 Single Stage Oxygen Regulator

$730.85

Description

Single Stage Oxygen Regulator

Model 3500 high-pressure, high-flow single stage Oxygen regulator is specifically designed to provide high gas flows from Cylinders and to supply manifold gas systems. It is also ideal for special high-flow Cylinder applications such as heavy cutting and heating. It has dual port outlets and a neoprene diaphragm. Includes a 3/8 in. NPT auxiliary port.

Features

  • Operates on high pressure Cylinders of up to 3000 PSIG
  • Ideal for special high flow Cylinder applications
  • Easy-to-operate brass T-screw bar adjusting handle
  • Brass body and bonnet for longer service life
  • Large 2.75 in. neoprene diaphragm for improved pressure control
  • 2.5 in. Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the CTFE Kel-F seat from particulate contamination
  • Equipped with a tamper-proof, self-reseating, internal high pressure safety relief valve
  • Equipped with dual outlet ports
  • Features 3/8 in. NPT outlet connection auxiliary port

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Brass
Bonnet Brass
Capacity High pressure
high flow
Certification CGA E-4
Cv 0.4
Delivery Pressure Gauge (PSIG) 200
Delivery Pressure Range (PSIG) 0 – 125
Diaphragm Neoprene
Equipped With Dual port outlets
3/8 in. NPT auxiliary port
Gas / Gas Service Oxygen
Gauges 2.5 in. Brass dual scale (psi/bar)
Inlet Connection CGA 540
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. – 18 RH
Pressure Regulation PSIG/100 PSIG 0.9
Recommended Items/Accessories Plug – Model 967 1/4 in. NPT – PN 9000306
Plug – Model 967 3/8 in. NPT Hex Socket – PN 9000373
Seat CTFE (Kel-F®)
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 1 Year
