Description

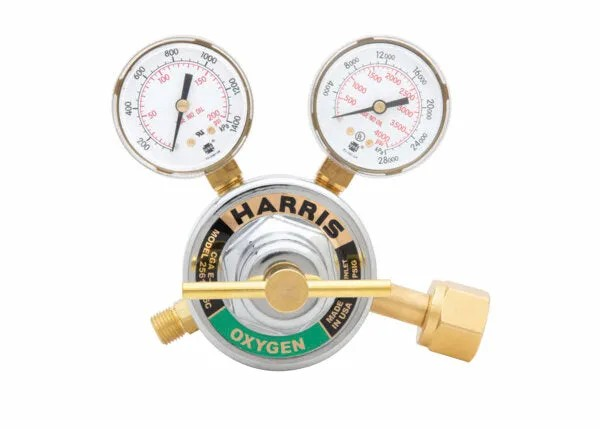

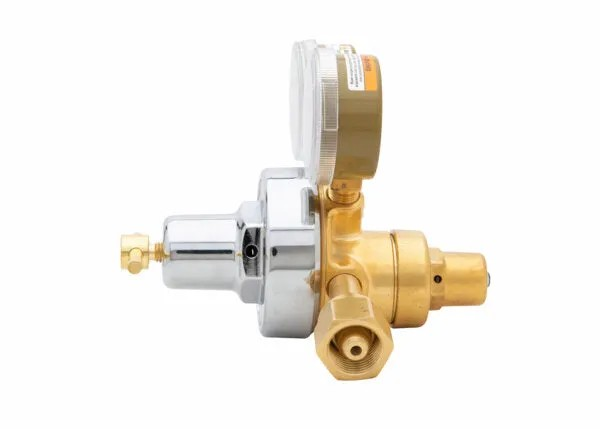

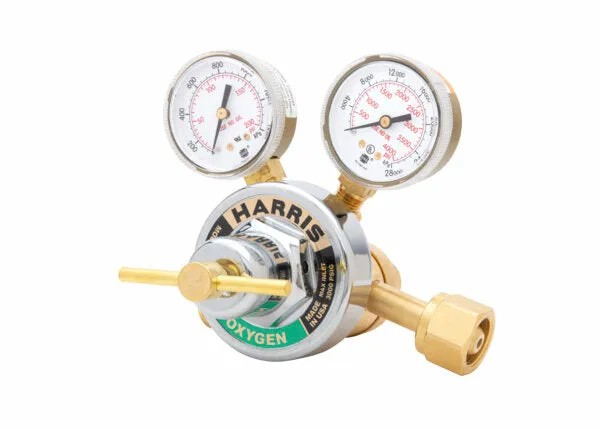

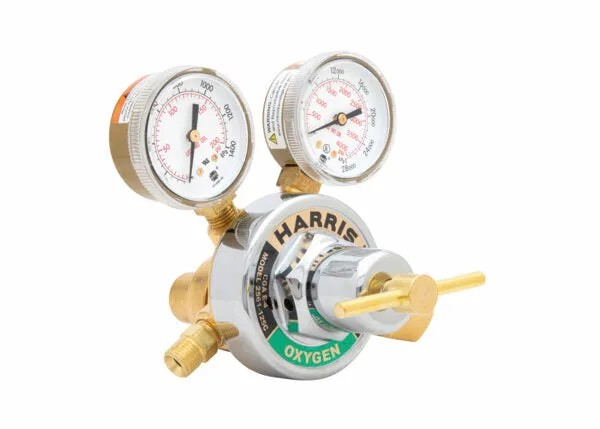

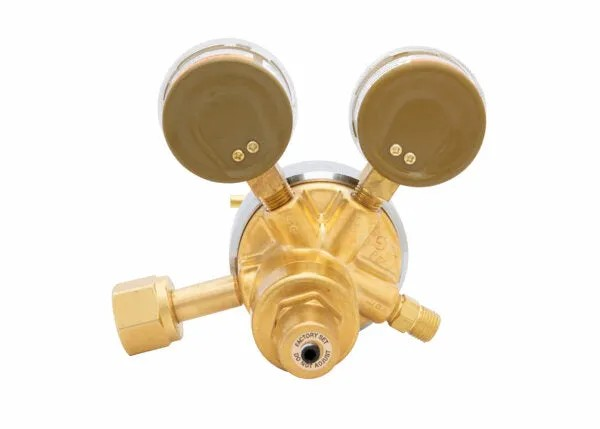

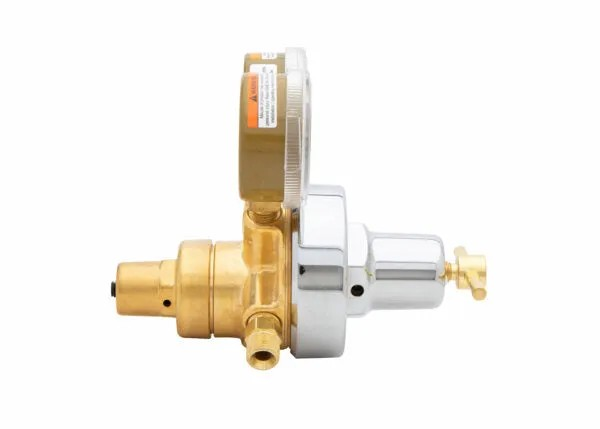

Two Stage Oxygen Regulator

Model 2561 is an economical two stage Oxygen regulator for welding and similar applications where neoprene diaphragms are acceptable. It is used when constant delivery pressure is required over a wide range of inlet pressures. This model features a one-piece encapsulated seat design with internal filter and PTFE Teflon® seat.

Features

• Economical, two-stage regulator for welding applications where neoprene diaphragms are acceptable
• Designed for constant delivery pressure over a wide range of inlet pressures
• Brass body and chrome-plated zinc bonnet for longer service life
• Easy-to-operate brass T-screw adjusting handle
• 2 in. Gold painted steel dual scale easy-to-read gauges (psi/kPa)
• Neoprene diaphragm for greater sensitivity and improved performance
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Conforms to CGA E-4 standard
• Equipped with a tamper-proof, self-reseating, high pressure internal safety relief valve
• Equipped with a tamper proof, self-reseating internal high pressure safety relief valve
