Description

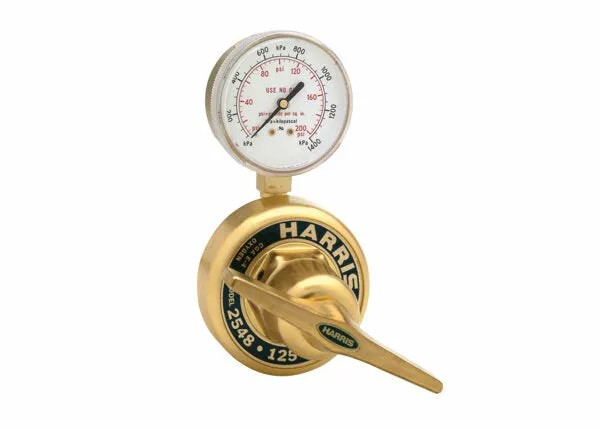

1/4″ Pipeline Single Stage Oxygen Regulator

Model 2548 1/4″ pipeline single stage Oxygen regulator is designed for special gas applications requiring stainless steel diaphragms at inlet pressures up to 3000 PSIG. This heavy-duty, high flow, pipeline regulator has side entry access and a 1/4″ NPT inlet connection. It features a forged brass body and bonnet, a one-piece encapsulated seat design with internal filter and Teflon® seat, as well as an internal high pressure relief valve.

Features

• Single-stage high flow stainless steel diaphragm pipeline regulator
• Designed for special gas applications with inlet pressures up to 3000 psig
• Easy-to-operate brass “T” screw bar adjusting handle
• Forged brass body and bonnet for longer service life
• Large 2.75″ stainless steel diaphragm for corrosion resistance and low leakage rate yielding higher gas purity
• 2.5″ Brass dual scale (psi/kPA) durable, easy-to-read gauge
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Maximum inlet pressure is 3000 psig
• Conforms to CGA E-4 standard
• Equipped with a tamper proof, self-reseating internal high pressure safety relief valve
