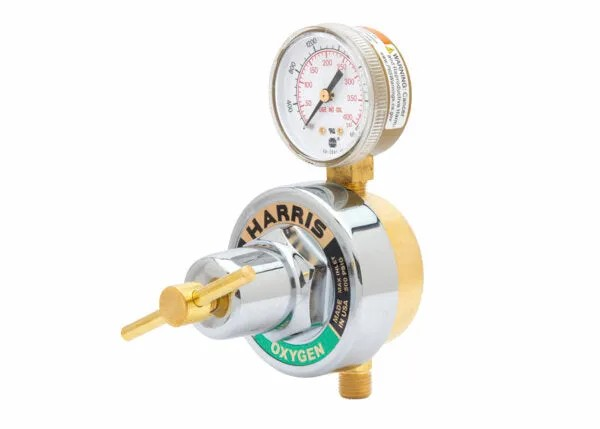

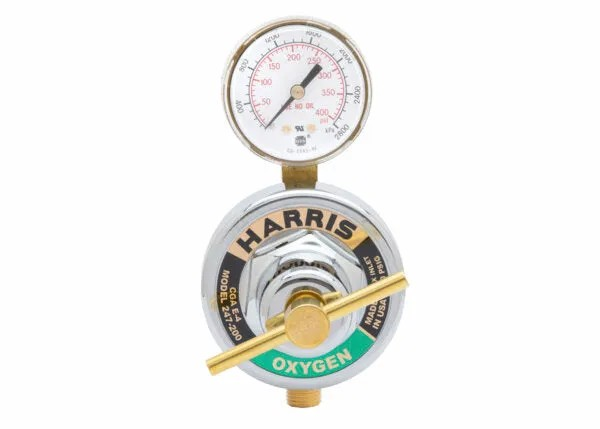

Harris 247-200 1/4 in RH Pipeline Single Stage Oxygen Regulator

$302.50

Description

RH Pipeline Single Stage Oxygen Regulator

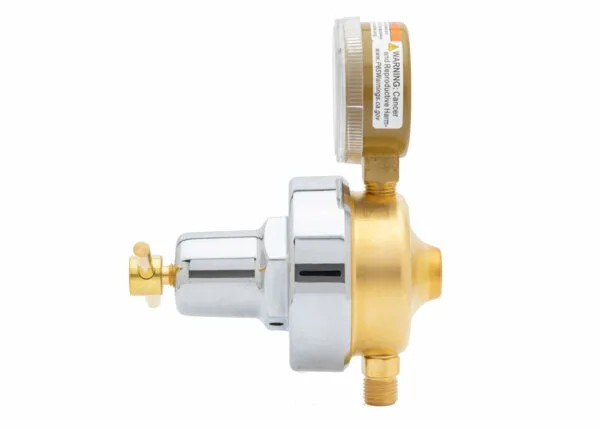

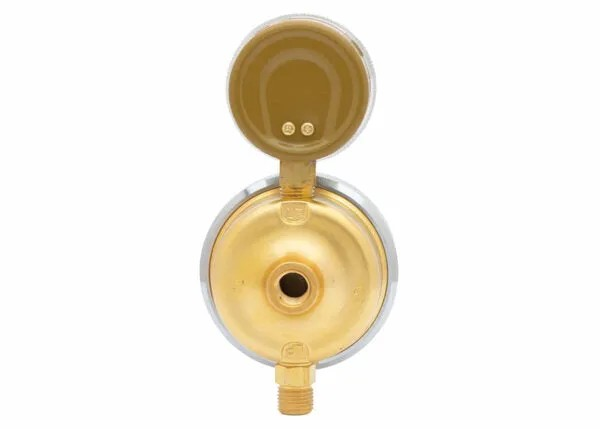

Model 247-200 1/4 in RH pipeline single stage Oxygen regulator provides high gas flow for gas distribution systems. This heavy-duty, economically priced, pipeline Oxygen Regulator has back entry access and a 1/4 in. NPT (F) inlet connection. It features a brass body, chrome-plated zinc die-cast bonnet, 2 in. gold-painted steel dual scale gauge, brass T-screw adjustment and one-piece encapsulated seat design with internal filter and PTFE Teflon seat.

Features

  • Economically priced back entry pipeline Regulator
  • Designed to provide high gas flows for gas distribution systems
  • Brass body and chrome-plated zinc die-cast bonnet for longer service life
  • Easy-to-operate brass T-screw adjusting handle
  • 2 in. Gold painted steel dual scale easy-to-read gauge (psi/kPa)
  • Rubber diaphragm for more sensitive pressure control
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination

Specifications

Equipment

Adjusting Screw Brass T-screw
Body Brass
Bonnet Electroless nickel-plated brass zinc die-cast
Certification CGA E-4
Cv 0.53
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 – 200
Diaphragm Rubber
Duty Heavy
Gas / Gas Service Oxygen
Gauges 2 in. Gold painted steel dual scale (psi/kPa)
Inlet Connection 1/4 in. NPT (F)
Maximum Inlet Pressure (PSIG) 500
Outlet Connection 9/16 in. – 18 RH
Pressure Regulation PSIG/100 PSIG 1.6
Seat PTFE Teflon®

Warranty

Warranty 7 Years
