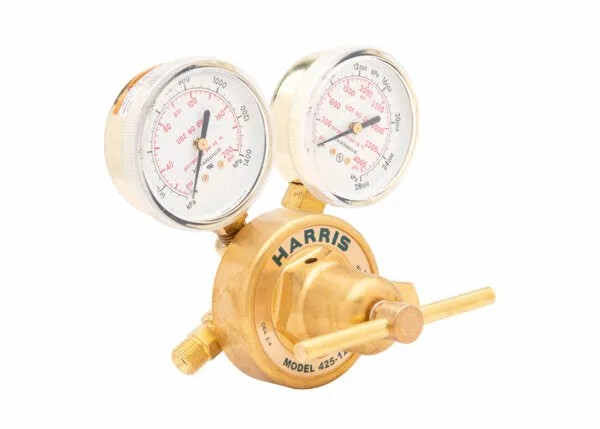

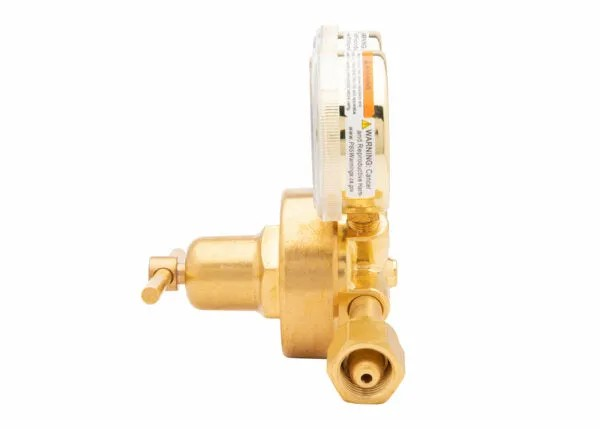

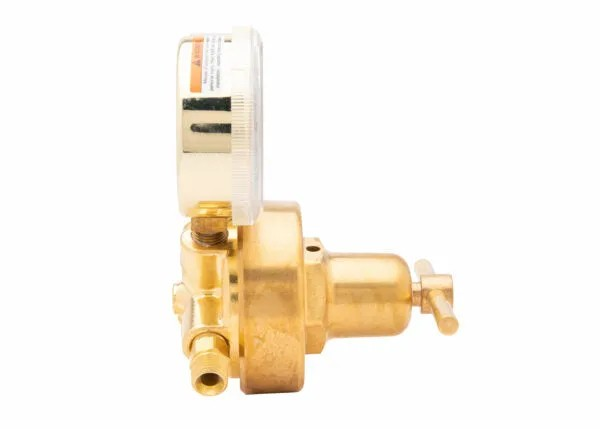

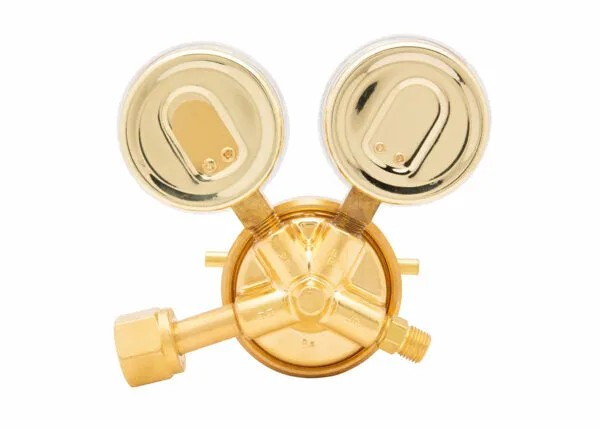

Harris 425-200-540 Premium Single Stage Oxygen Regulator

$271.25

Description

Premium Single Stage Oxygen Regulator

Model 425 is an industrial premium, single stage, oxygen regulator that is an ideal choice for most industrial applications. This Regulator incorporates a number of Harris features designed to make it a rugged, long-lasting performer, including an exclusive tamper-proof, self-reseating internal HP safety valve and a neoprene diaphragm. The 425 is also available in a multitude of pressure ranges and for all standard industry gases.

Features

  • Single Stage industrial Regulator with premium features
  • Designed for rugged, long-lasting performance
  • Easy-to-operate brass “T” screw adjusting handle
  • Brass body and bonnet for longer service life
  • Neoprene diaphragm for improved pressure control
  • 2.5″ Brass dual scale easy-to-read gauges
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • UL listed
  • Equipped with a tamper-proof, self-reseating internal safety relief valve

Specifications

Equipment

Adjusting Screw Brass T-screw
Body Brass
Bonnet Brass
Certification CGA E-4
UL® listed
Cv 0.17
Delivery Pressure Gauge (PSIG) 400
Delivery Pressure Range (PSIG) 0 – 200
Diaphragm Neoprene
Duty Heavy
Equipped With Tamper proof, self-reseating internal high pressure safety valve
Gas / Gas Service Oxygen
Gauges 2.5 in. Brass dual scale (psi/kPa)
Inlet Connection CGA 540
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. – 18 RH
Pressure Regulation PSIG/100 PSIG 0.20
Recommended Items/Accessories Steel Gauge Guard – Red (Fuel) – PN 4300238
Steel Gauge Guard – Green (Oxygen) – PN 4300239
Adaptor – 9/16 in. – 18 (F) x 5/8 in. – 18 (F) PN 90000002
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) 4000

Warranty

Warranty 7 Years
