Harris 330-125-540 Single Stage Oxygen Regulator

$628.50

Description

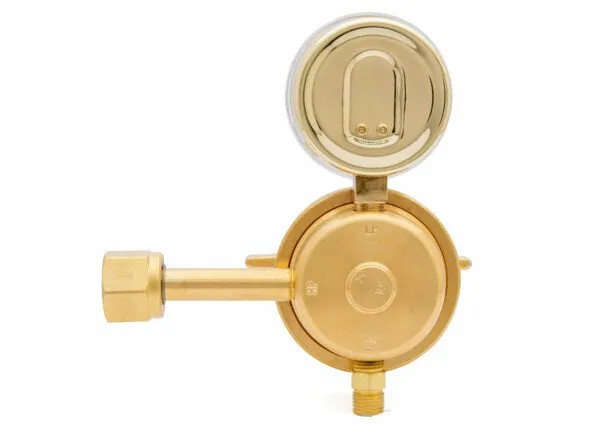

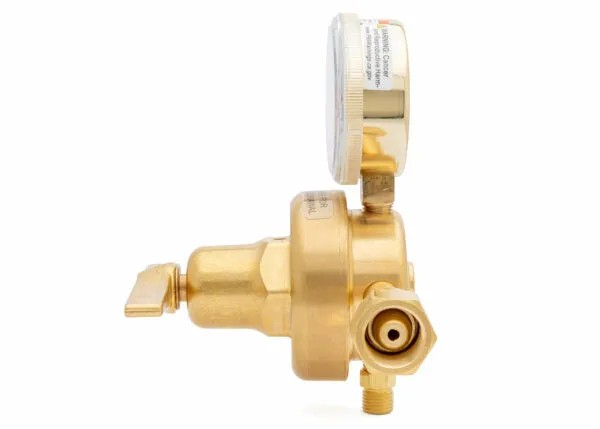

330 Single Stage Oxygen Regulator

Model 330 single stage Oxygen Regulator heavy-duty allows for gas withdrawal from oxygen liquid Cylinders. Its unique design permits inlet pressures up to 3000 PSIG for use on high pressure Cylinders. The Model 301 features a brass body, brass T- screw bar adjustment, Stainless Steel diaphragm, 2.5 in. brass dual scale gauge, one-piece encapsulated seat design with internal filter and PTFE Teflon seat and Harris’ exclusive self-reseating, tamper-proof internal high pressure safety valve. Model 330 has an auxiliary plugged low pressure port. This model is also UL listed.

Features

  • Operates on liquid Cylinders and high-pressure Cylinders without damage
  • Unique design allows inlet pressures up to 3000 PSIG
  • Forged brass body and bonnet for longer service life
  • Easy-to-operate brass T-screw bar adjusting handle
  • 2.5 in. Brass dual scale easy-to-read gauge (psi/kPa)
  • One-piece encapsulated seat design with internal filter to protect the PTFE Teflon seat from particulate contamination
  • Stainless Steel diaphragm for corrosion resistance and greater strength in adverse conditions
  • Includes an auxiliary plugged low pressure port

Specifications

Equipment

Adjusting Screw Brass T-screw bar
Body Forged brass
Bonnet Forged brass
Certification CGA E-4
Cv 0.37
Delivery Pressure Gauge (PSIG) 200
Delivery Pressure Range (PSIG) 0 – 125
Diaphragm Stainless steel
Duty Heavy
Equipped With Tamper proof, self-reseating, internal high-pressure safety valve
Gas / Gas Service Oxygen (O2)
Gauges 2 in. Brass dual scale (psi/kPa)
Inlet Connection CGA 540
Maximum Inlet Pressure (PSIG) 3000
Outlet Connection 9/16 in. – 18 RH (M)
Pressure Regulation PSIG/100 PSIG 0.20
Seat PTFE Teflon®
Supply Pressure Gauge (PSIG) –

Warranty

Warranty 7 Years
